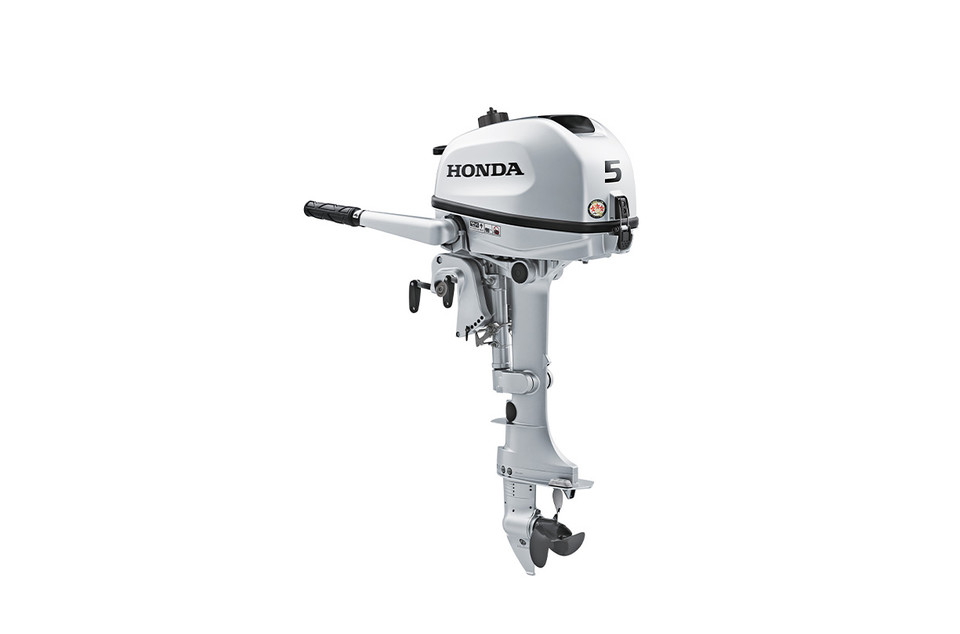

Honda’s 5hp Outboards are quiet, dependable and lightweight. Which is exactly what you want in a portable outboard. It’s easy to transport and ideal for small tenders, and jon boats. And with features designed to make your boat ride smooth, quiet, and Honda dependable, you’ll be ready to enjoy a day on the water for years to come.
KEY FEATURES
Lightweight and Compact
Easy to Carry and Install
Convenient Folding Tiller Handle
Twist Grip Throttle Making it More Comfortable to Use
F-N-R Gearshift
Shallow Water Drive
Quitest in its Class
Low Vibration for a Comfortable Ride
Large Displacement Engine for More Power
Best in Class Run Time
6 Amp Charging System (Optional)
Easy Starting
One-Push Stop Switch
4-Front Corrosion Protection System that Fights the Elements
Oil Alert Protects Your Engine
MOTOR SPECIFICATIONS
Engine Type: Honda BF5DHSHNA Four Stroke
Horsepower: 5hp
Cylinders: 1 cyl
Shaft Length: 15″ Short
Steering: Tiller
Starter: Manual
Weight: 60 lbs
Tilt Range: 70°
Trim Range: 5-Stages 5°-9°-13°-17°-21°
Full Throttle Range: 5000 – 6000 rpm
Displacement: 127 cc
Induction System: Carb
Cooling System: Water Cooled
Warranty: Honda Marine 5-Year Warranty
STANDARD FEATURES
3-Blade Aluminum Propeller (Diameter x Pitch: 7 x 6¾ inches)
Internal Fuel Tank (.39 gal)
External Fuel Tank Connection (External Tank & Fuel Line Sold Separately)
